Captain
Dry Run (1 to 3 HP)
Single-phase starter with dry-run protection that shuts the pump off when the borewell/sump runs empty.
- HP range
- 1 – 3 HP
- Phase
- Single phase
- Supply
- 230 V AC, 50 Hz
Overview
About the Dry Run (1 to 3 HP)

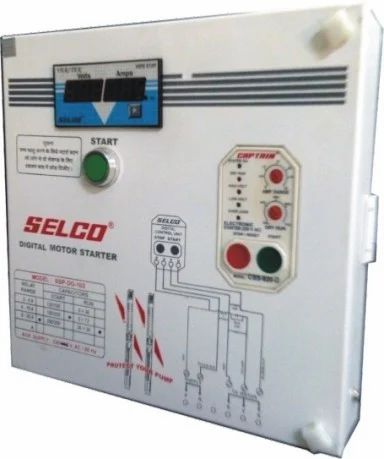

A DOL starter panel that senses the drop in motor current when water is exhausted and trips the pump to prevent dry-running damage, with a separately adjustable overload setting. It runs steadily even at low voltage and shows load current and voltage on panel meters. Made for 1–3 HP single-phase submersible and openwell pumps.
Features
Key features
Dry-run cut-off (low-current sensing)
Adjustable overload protection
Overload / pump-on / dry-run indicator LEDs
Ammeter & voltmeter
Auto-start compatible
Wall mounting
Specifications
Technical specifications
Specifications
| HP range | 1 – 3 HP |
| Phase | Single phase |
| Supply | 230 V AC, 50 Hz |
| Operating voltage | 120–270 V (no contactor chatter) |
| Dry-run setting | Adjustable dry-run amps |
| Overload setting | Adjustable O/L amps |
Material of Construction
Parts & materials
| Part name | Material |
|---|---|
| Cabinet | Mild steel, powder-coated |
| Meters | Analog ammeter & voltmeter |
Applications
Where it's used
Single-phase borewell submersible pumps
Openwell and agricultural pumps prone to water shortage
