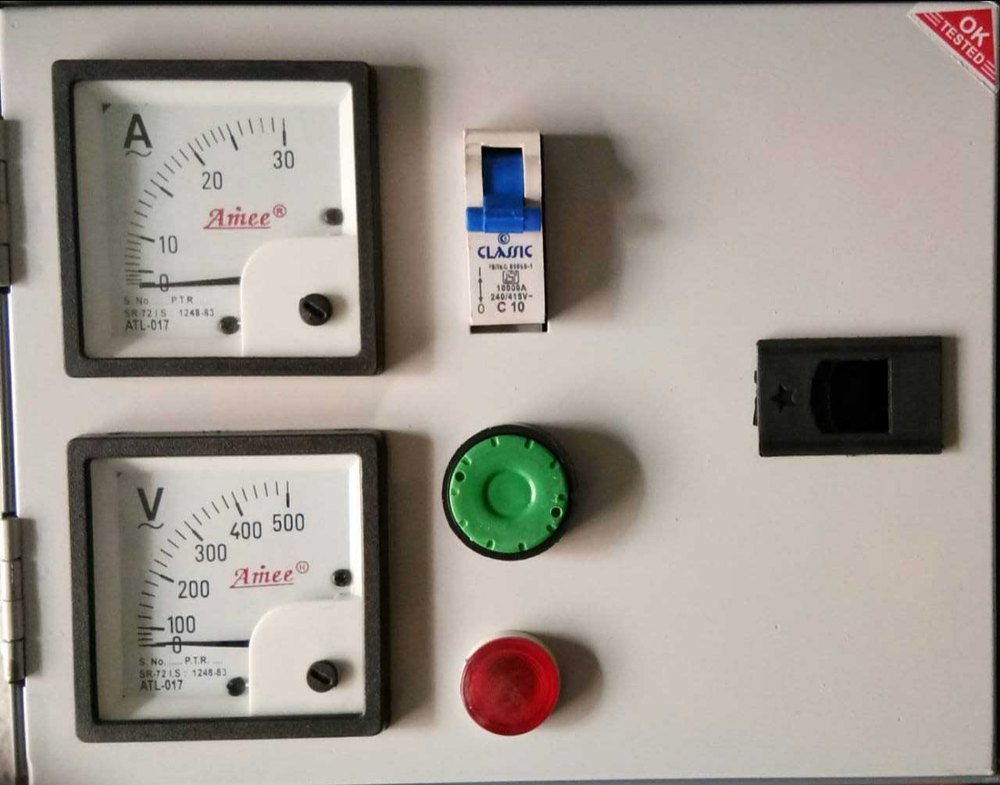

MCB Panel (0.5 to 3 HP)
MCB-based single-phase control panel for 0.5–3 HP submersible and openwell pumps, with short-circuit protection built in.
- HP range
- 0.5 – 3 HP
- Phase
- Single phase
- Supply
- 220/240 V, 50/60 Hz
Overview
About the MCB Panel (0.5 to 3 HP)
A control panel using a single-pole automatic MCB for short-circuit and overload tripping, together with start and run capacitors sized to the motor. An ammeter and voltmeter let the user monitor load current and line voltage. Covers the 0.5–3 HP single-phase range in a mild-steel enclosure.
Features
Key features
Automatic MCB short-circuit protection
Overload protection
Start & run capacitors included
Current & voltage metering
Wall mounting
Specifications
Technical specifications
Specifications
| HP range | 0.5 – 3 HP |
| Phase | Single phase |
| Supply | 220/240 V, 50/60 Hz |
| MCB | Single-pole automatic, 16–25 A, C-curve, 10 kA |
| Start capacitor | 100–200 MFD (by HP) |
| Run capacitor | 36–50 MFD |
| Metering | Ammeter (0–30 A) & voltmeter (0–500 V) |
Material of Construction
Parts & materials
| Part name | Material |
|---|---|
| Enclosure | Mild steel (PVC variant also offered) |
| Breaker | Miniature circuit breaker (C-curve) |
Applications
Where it's used
Single-phase submersible pumps
Openwell pumps
Domestic and agricultural water supply
