Sharp Pumps
Neo Sharp (0.5 to 5 HP)

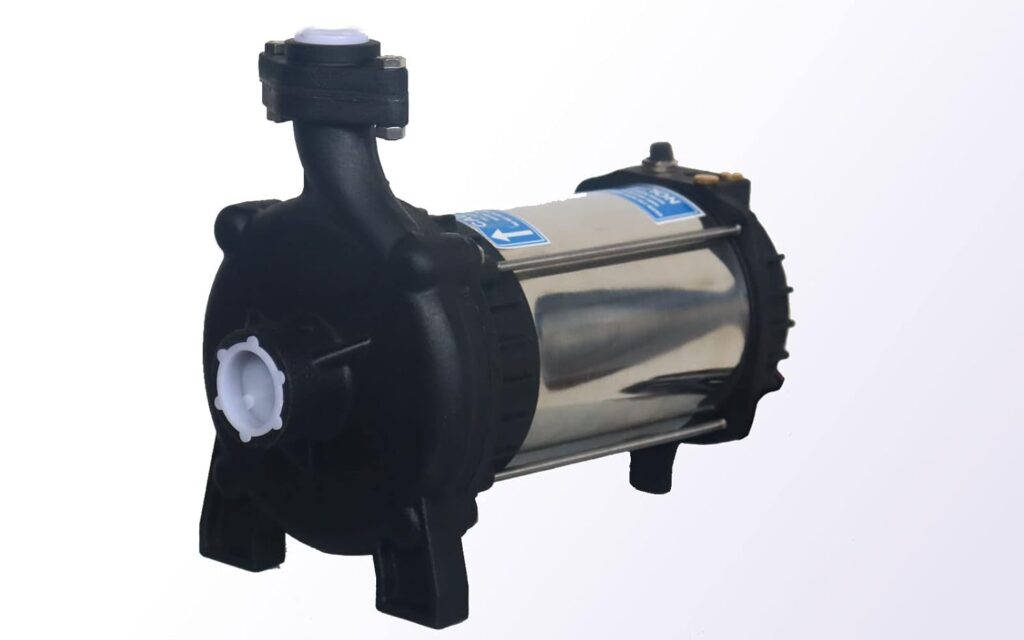

Neo Sharp mini openwell submersible pump with control panel — noiseless, high-discharge water lifting.
- Type
- Openwell submersible (with control panel)
- Power
- 0.5 – 5 HP (0.5–1 HP figures shown)
- Phase
- Single phase, 220–240 V, 50 Hz
Overview
About the Neo Sharp (0.5 to 5 HP)
Neo Sharp openwell submersible range runs fully submerged for quiet, high-discharge operation and ships with a control panel. Stainless-steel motor body and shaft with a Noryl impeller and cast-iron delivery casting. Figures below cover the 0.5 HP and 1 HP single-phase models.
Features
Key features
Runs submerged — noiseless operation
Supplied with control panel
High discharge capacity
Lightweight, easy to operate
Specifications
Technical specifications
Specifications
| Type | Openwell submersible (with control panel) |
| Power | 0.5 – 5 HP (0.5–1 HP figures shown) |
| Phase | Single phase, 220–240 V, 50 Hz |
| Max head | 15 m (50 ft) at 0.5 HP; 24 m (80 ft) at 1 HP |
| Max discharge | 130 LPM at 0.5 HP; 230 LPM (13,800 LPH) at 1 HP |
| Outlet size | 25 mm |
| Speed | 2800 rpm |
Material of Construction
Parts & materials
| Part name | Material |
|---|---|
| Motor body | Stainless steel |
| Shaft | Stainless steel |
| Impeller | Noryl |
| Delivery casting | Cast iron |
Applications
Where it's used
Domestic & community water supply
Garden and farm irrigation
Fountains and construction sites
Overhead tank filling
