Captain
Square
Square-type submersible pump control panel with electronic protection and full metering.
- HP range
- up to 5 HP
- Phase
- Single phase
- Aux supply
- 230 V AC, 50 Hz
Overview
About the Square

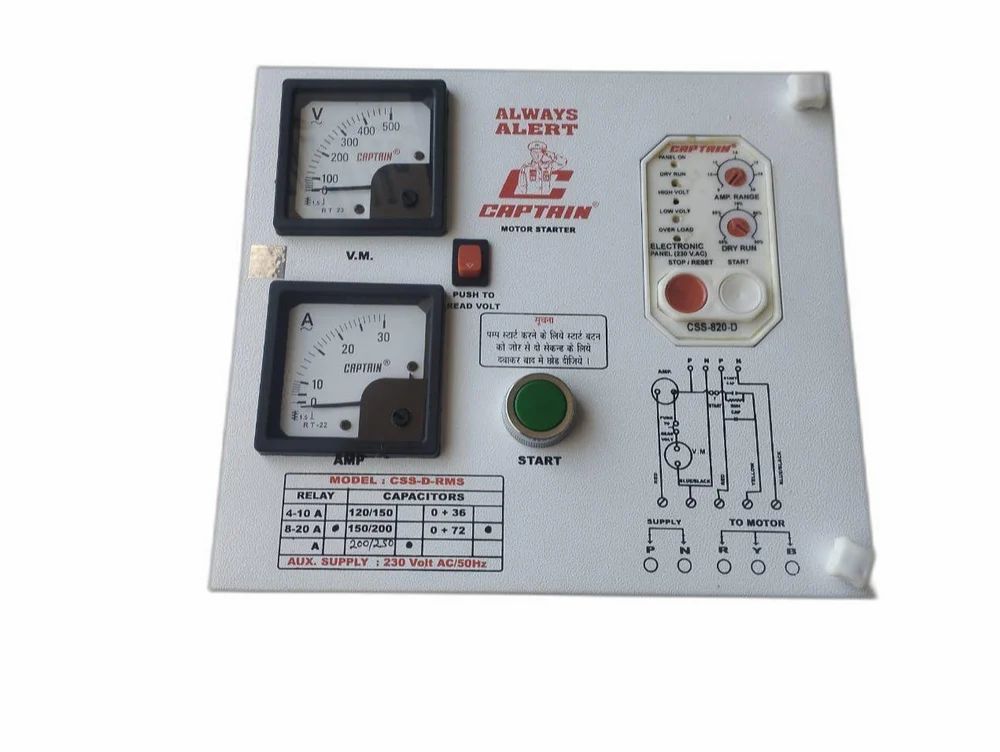

The classic square metal control panel for single-phase submersible pumps, combining an analog ammeter and voltmeter with an electronic protection module that guards against dry run, high/low voltage and overload. Amp-range and dry-run levels are adjustable, with a push-to-read-volt button and a start button.
Features
Key features
Electronic dry-run protection
High-volt / low-volt cut-off
Overload protection
Adjustable amp range & dry-run level
Ammeter, voltmeter & push-to-read-volt
Start button with wiring diagram on fascia
Specifications
Technical specifications
Specifications
| HP range | up to 5 HP |
| Phase | Single phase |
| Aux supply | 230 V AC, 50 Hz |
| Relay range | 4–10 A / 8–20 A |
| Start capacitor | 120–200 MFD |
| Run capacitor | 36–72 MFD |
| Automation | Semi-automatic |
Material of Construction
Parts & materials
| Part name | Material |
|---|---|
| Enclosure | Mild steel, powder-coated (square box) |
| Meters | Analog ammeter & voltmeter |
Applications
Where it's used
Single-phase submersible borewell pumps
Agricultural and domestic water supply
