Captain

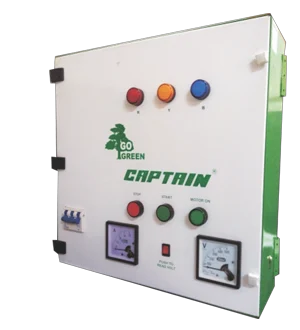

Starter (3 to 10 HP)
Three-phase electronic starter panel for 3–10 HP pump motors with full voltage and dry-run protection.
- HP range
- 3 – 10 HP
- Phase
- Three phase
- Supply
- 415 V AC, 50 Hz
Overview
About the Starter (3 to 10 HP)
A three-phase 415 V starter panel covering the 3–10 HP range (DOL up to ~7.5 HP, star-delta above), with electronic protection against over/under voltage, single phasing, phase reversal, overload and dry run. It provides ammeter and voltmeter metering, R-Y-B indicators, auto/manual operation and an MCB.
Features
Key features
Over/under-voltage protection
Single-phasing preventer & phase-reversal sensing
Overload and short-circuit protection
Dry-run protection
Auto / manual operation
Ammeter, voltmeter & indicator lamps
Specifications
Technical specifications
Specifications
| HP range | 3 – 10 HP |
| Phase | Three phase |
| Supply | 415 V AC, 50 Hz |
| Current setting | 2–14 A |
| Over-voltage protection | 300–500 V, 0–60 s |
| Star-delta timer | 10–99 s (SD version) |
| Metering | Ammeter (R-Y-B) & voltmeter (0–500 V) |
Material of Construction
Parts & materials
| Part name | Material |
|---|---|
| Cabinet | CRC sheet metal, powder-coated |
| Switchgear | Contactor(s) + MCB |
Applications
Where it's used
3–10 HP three-phase submersible and openwell pumps
Agricultural and light-industrial pumping
