Submersible Pumpset (CI MF)

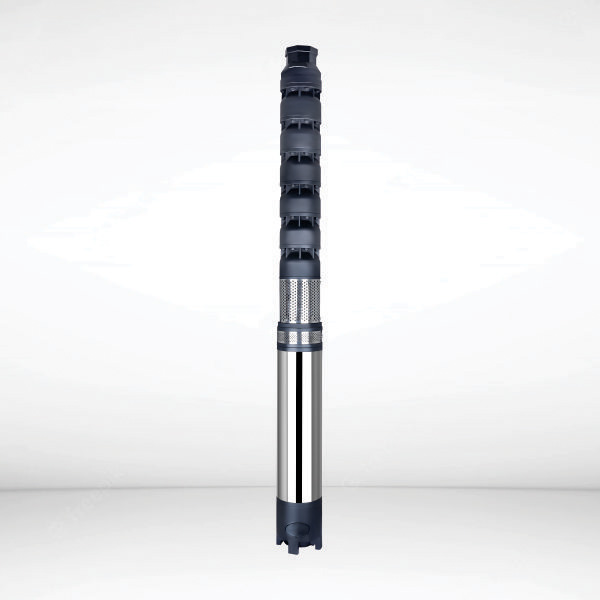

150 mm (V6) mixed-flow borewell submersible pumpset, MF (CI) series.
- Type
- V6 (150 mm / 6-inch) mixed-flow borewell submersible, multistage, water-filled
- Power
- 3.0 – 25 HP
- Phase
- Three phase, 380 V
Overview
About the Submersible Pumpset (CI MF)
Acube V6 (6-inch) mixed-flow borewell submersible pumpset, V6MF series, with a water-filled motor, SS-410 impellers and cast-iron (CI FG 200) diffusers. Three-phase 3–25 HP for high-discharge irrigation and community water supply.
Features
Key features
Water-filled motor; mixed-flow high-discharge hydraulics
Superior polymer-coated winding wire; designed to start at low voltage
Epoxy-painted rotors; dynamically balanced components
Hard-chrome-plated bearing sleeves
Built-in NRV with minimal friction
Sand-guard protection for top and suction bushes
Specifications
Technical specifications
Specifications
| Type | V6 (150 mm / 6-inch) mixed-flow borewell submersible, multistage, water-filled |
| Power | 3.0 – 25 HP |
| Phase | Three phase, 380 V |
| Max head | ~216 m |
| Max discharge | ~1150 LPM |
| Outlet size | 65 – 75 mm |
| Stages | 3 – 20 |
Material of Construction
Parts & materials
| Part name | Material |
|---|---|
| Motor body | Stainless steel |
| Impeller | SS 410 |
| Diffuser | CI FG 200 (cast iron) |
| Bearing housing | CI FG 200 |
| Motor shaft | SS AISI 410/420 |
| Bush bearing | Bronze LTB-4 |
| Suction housing | CI FG 200 |
| Thrust bearing | SS / Carbon |
| NRV | CI FG 200 |
Applications
Where it's used
Irrigation
Community water supply
High-rise buildings
Hotels
Dairies and livestock farms
Sprinklers
Solar pumping
Industrial water supply
