Acube Pumps

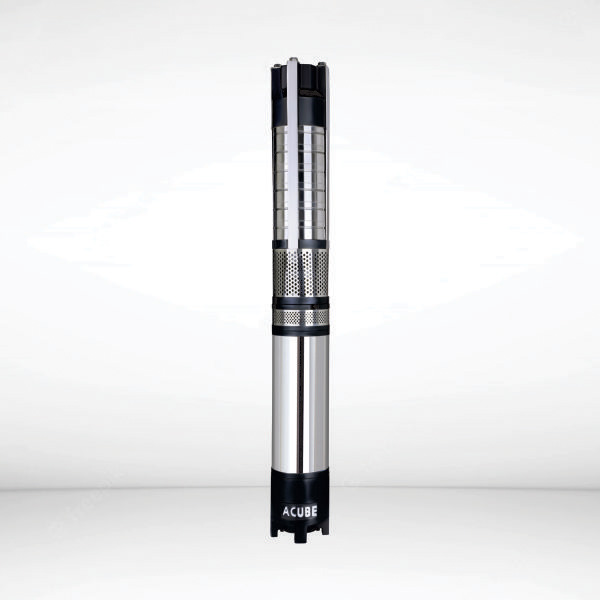

Submersible Pumpset Reva (K50)
150 mm (V6) high-head borewell submersible pumpset, Reva K50 sub-series.
- Type
- V6 (150 mm / 6-inch) high-head borewell submersible, multistage, water-filled
- Power
- 3.0 – 30 HP (2.2–22 kW)
- Phase
- Three phase, 380/415 V
Overview
About the Submersible Pumpset Reva (K50)
Reva is Acube's V6 (6-inch) borewell sub-series; the K50 high-head variant uses a water-filled motor with SS-410 impellers and SS-304 diffusers. Three-phase 3–30 HP delivering heads to ~450 m. Specs mirror the Acube V6 K50 high-head series.
Features
Key features
Water-filled motor; high-head hydraulics
High-efficiency investment-cast AISI 304 diffusers
Superior polymer-coated winding wire for voltage-fluctuation resistance
Epoxy-painted rotors; dynamically balanced components
Heavy-duty carbon thrust bearing
Hard-chrome-plated bearing sleeves and sand-guard protection
Specifications
Technical specifications
Specifications
| Type | V6 (150 mm / 6-inch) high-head borewell submersible, multistage, water-filled |
| Power | 3.0 – 30 HP (2.2–22 kW) |
| Phase | Three phase, 380/415 V |
| Max head | ~450 m |
| Max discharge | ~770 LPM |
| Outlet size | 50 – 65 mm |
| Stages | 3 – 30 |
Material of Construction
Parts & materials
| Part name | Material |
|---|---|
| Motor body | Stainless steel |
| Impeller | SS 410 |
| Diffuser | SS 304 |
| Bearing housing | CI FG 200 |
| Motor shaft | SS AISI 410/431 |
| Bush bearing | Bronze LTB-4 |
| Thrust bearing | SS / Carbon |
| NRV | CI FG 200 |
Applications
Where it's used
Irrigation
Community water supply
High-rise buildings
Hotels
Dairies
Poultry farms
Sprinklers
Solar pumping
Industrial water supply
