Sharp Pumps
Copper (0.5 to 1 HP)
100% copper-winding V-type self-priming monoblock for reliable domestic and building water supply (0.5–1 HP).
- Type
- V-type self-priming monoblock
- Power
- 0.5 – 1 HP (0.37–0.75 kW)
- Phase
- Single phase, 220–240 V, 50 Hz
Overview
About the Copper (0.5 to 1 HP)

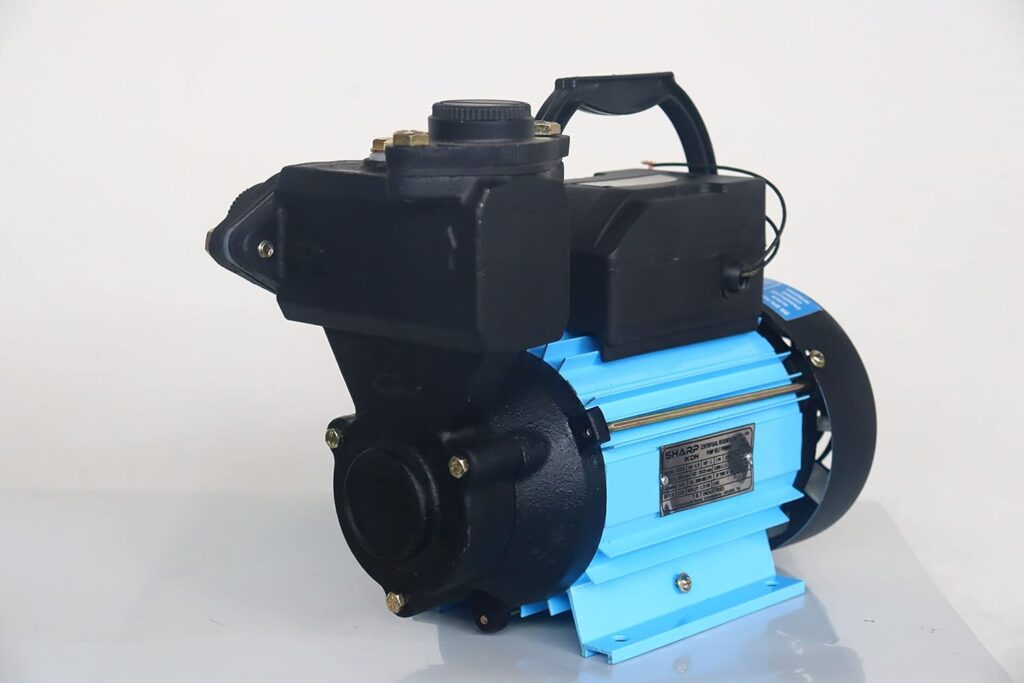

Sharp V-type self-priming monoblock with 100% copper winding on an aluminium + cast-iron body. Self-primes quickly and delivers high head; offered in 0.5 HP and 1 HP single-phase with in-built thermal overload protection.
Features
Key features
V-type self-priming design
In-built thermal overload protector
Compact with strong handle
High-head performance
Specifications
Technical specifications
Specifications
| Type | V-type self-priming monoblock |
| Power | 0.5 – 1 HP (0.37–0.75 kW) |
| Phase | Single phase, 220–240 V, 50 Hz |
| Max head | 20 m at 0.5 HP; 30 m at 1 HP |
| Max discharge | 17 LPM at 0.5 HP; 90 LPM (5400 LPH) at 1 HP |
| Outlet size | 25 mm (suction × delivery 25×25 mm) |
| Suction lift | 3 m (0.5 HP) |
| Speed | 2880 rpm |
Material of Construction
Parts & materials
| Part name | Material |
|---|---|
| Winding | 100% copper |
| Body | Aluminium + cast iron |
Applications
Where it's used
High-rise buildings
Hospitals and hotels
Car washing
Domestic supply and irrigation
