Kissan Pumps

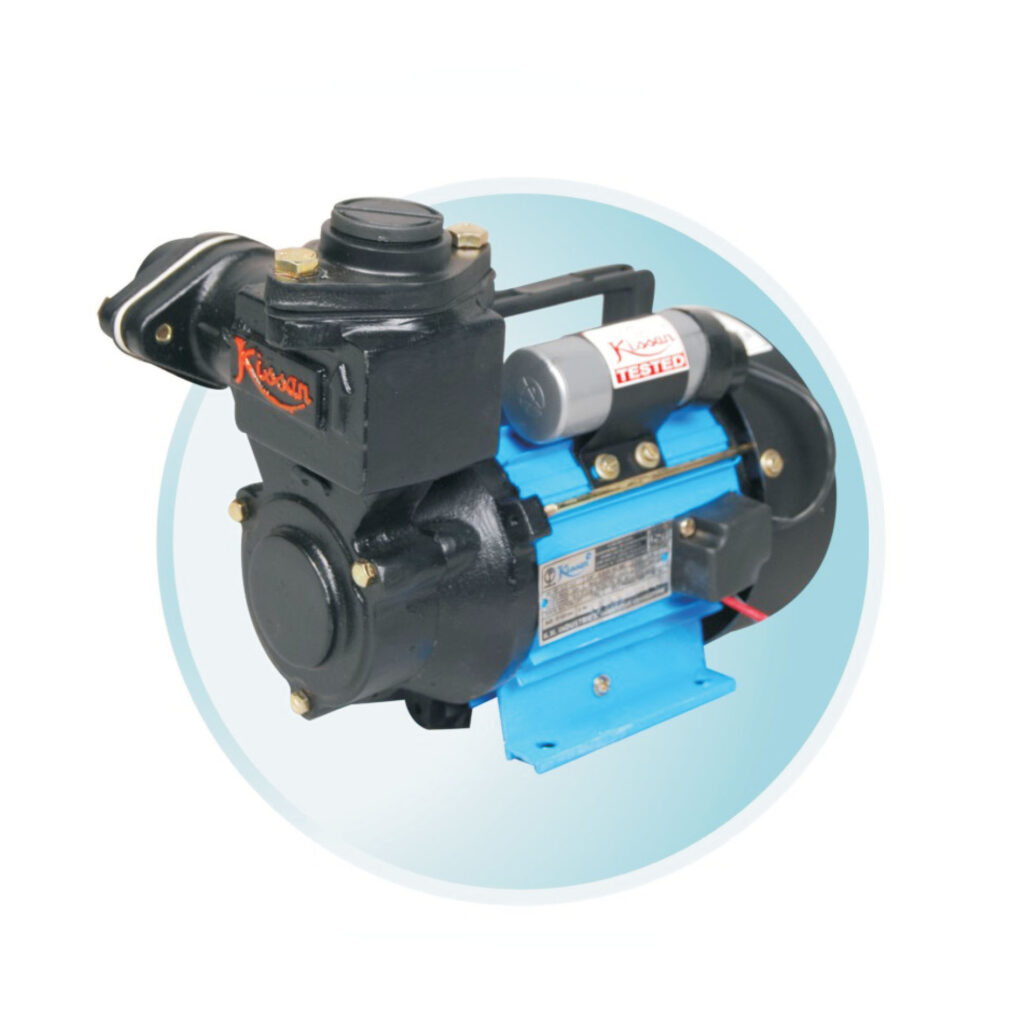

Kissan (1 HP)
1 HP self-priming monoset that fills large overhead tanks fast, up to 30 m head.
- Type
- Self-priming monoset (monoblock)
- Power
- 1 HP (1.1 kW)
- Phase
- Single phase, 240 V
Overview
About the Kissan (1 HP)
Kissan's 1 HP self-priming monoset (Big Flow class) is designed for superfast filling of large overhead tanks (1000 L and above) in low- to mid-rise houses. It develops up to 30 m head and ~2000 LPH at 2800 rpm, with an SS 410 shaft, high-performance bearing and thermal-overload protection.
Features
Key features
Up to 30 m head, ~2000 LPH at 2800 rpm
Self-primes in ~180 s at 3 m suction
5 bar discharge pressure
High-performance bearing & SS 410 shaft
Thermal-overload protection; 1-year warranty
Specifications
Technical specifications
Specifications
| Type | Self-priming monoset (monoblock) |
| Power | 1 HP (1.1 kW) |
| Phase | Single phase, 240 V |
| Max head | 30 m |
| Max discharge | 2000 LPH |
| Outlet size | 25 × 25 mm |
| Speed | 2800 rpm |
Material of Construction
Parts & materials
| Part name | Material |
|---|---|
| Body | Aluminium |
| Shaft | Stainless steel (SS 410) |
| Windings | Enamelled copper |
| Bearing | Double-shielded pre-lubricated ball bearing |
Applications
Where it's used
Fast filling of large overhead tanks (1000 L+)
Villas, bungalows and builders' floors up to 4 floors
Domestic water transfer in independent houses
