Captain
Digital

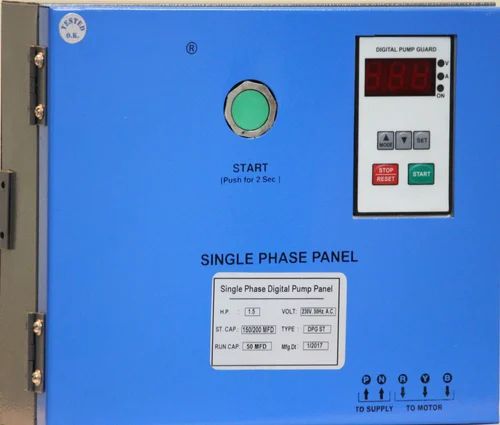

Microcontroller-based digital pump starter with volt/amp display, auto on/off and full voltage protection.
- HP range
- 0.5 – 3 HP
- Phase
- Single phase (three-phase variant available)
- Supply
- 230 V AC, 50 Hz
Overview
About the Digital
A digital control panel that continuously reads line voltage and motor current on a seven-segment display and switches the pump automatically. It cuts off on high/low voltage, overload and dry run, and restarts once supply normalises. For single-phase pumps (three-phase digital variants also made), with an auto-off timer for unattended operation.
Features
Key features
Digital voltmeter/ammeter display
High- and low-voltage cut-off
Dry-run protection
Overload trip
Auto restart on voltage restoration
Auto / manual selection
Specifications
Technical specifications
Specifications
| HP range | 0.5 – 3 HP |
| Phase | Single phase (three-phase variant available) |
| Supply | 230 V AC, 50 Hz |
| Display | Seven-segment digital volt & amp meter |
| Auto-off timer | 1–500 min (settable) |
| Start capacitor | 100–150 MFD |
| Run capacitor | 50 MFD |
Material of Construction
Parts & materials
| Part name | Material |
|---|---|
| Enclosure | Mild steel, powder-coated |
| Front panel | Metal fascia with digital module |
Applications
Where it's used
Domestic and agricultural submersible pumps
Openwell pumps
Unattended borewell operation
