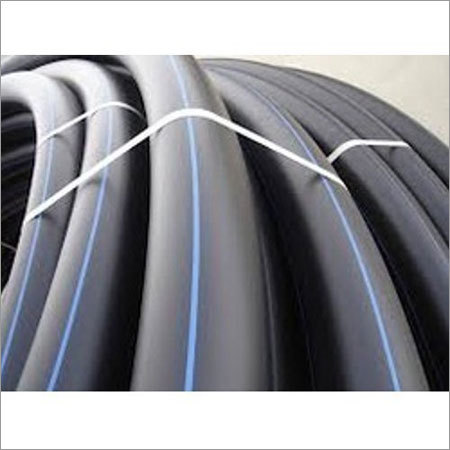

HDPE Pipe (32mm to 70mm)
Ekana HDPE water pipe, 32–70 mm OD, PN 2.5–16, to IS 4984.
- Material
- HDPE (PE63 / PE80 / PE100)
- OD range
- 32–70 mm
- Pressure class
- PN 2.5 – PN 16
Overview
About the HDPE Pipe (32mm to 70mm)
Ekana HDPE pipe for potable-water supply and irrigation, made in PE63 / PE80 / PE100 grades to IS 4984. The corrosion-free, UV-stabilised black polyethylene resists rust, scaling and most chemicals, joins leak-free by heat fusion, and has a smooth low-friction bore. Available 32–70 mm OD across PN 2.5 to PN 16 pressure classes, in coils and straight lengths.
Features
Key features
Corrosion-, rust- & scale-free
UV resistant (carbon black)
Leak-proof heat-fused joints
Smooth bore, low friction loss
Flexible, light, ~50-year service life
Specifications
Technical specifications
Specifications
| Material | HDPE (PE63 / PE80 / PE100) |
| OD range | 32–70 mm |
| Pressure class | PN 2.5 – PN 16 |
| Standard | IS 4984:2016 |
| Colour | Black (blue stripe for water) |
| Service temperature | approx. -20°C to 60°C |
| Jointing | Butt / socket heat fusion |
Material of Construction
Parts & materials
| Part name | Material |
|---|---|
| Pipe | HDPE with carbon-black UV stabiliser |
Applications
Where it's used
Potable water supply
Agriculture & irrigation
Borewell / bore-to-tank connection
Industrial fluid transfer
Get a Quote
Enquire about the HDPE Pipe (32mm to 70mm)
Share your requirement and our team will respond within one business day with pricing and sizing.
Sales hotline+91 96919 68355Enquiry: HDPE Pipe (32mm to 70mm)
