HDPE Pipe (32mm to 70mm)
Shree Ankit HDPE water pipe, 32–70 mm OD, PN 2.5–16, to IS 4984.
- Material
- HDPE (PE63 / PE80 / PE100)
- OD range
- 32–70 mm
- Pressure class
- PN 2.5 – PN 16
Overview
About the HDPE Pipe (32mm to 70mm)

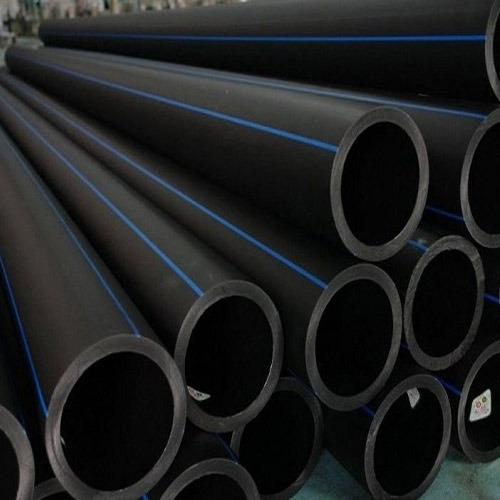

Shree Ankit HDPE pipe is a durable black polyethylene pipe for water supply, irrigation and borewell service in the 32–70 mm OD range. Produced in PE63 / PE80 / PE100 grades to IS 4984, it resists corrosion, scaling and UV, delivers a smooth high-flow bore, and joins leak-free by heat fusion. Supplied in PN 2.5–PN 16 pressure classes as coils or straight lengths.
Features
Key features
Corrosion-, rust- & scale-free
UV resistant (carbon black)
Leak-proof heat-fused joints
Smooth bore, low friction loss
Flexible, light, ~50-year service life
Specifications
Technical specifications
Specifications
| Material | HDPE (PE63 / PE80 / PE100) |
| OD range | 32–70 mm |
| Pressure class | PN 2.5 – PN 16 |
| Standard | IS 4984:2016 |
| Colour | Black (blue stripe for water) |
| Service temperature | approx. -20°C to 60°C |
| Jointing | Butt / socket heat fusion |
Material of Construction
Parts & materials
| Part name | Material |
|---|---|
| Pipe | HDPE with carbon-black UV stabiliser |
Applications
Where it's used
Potable water supply
Agriculture & irrigation
Borewell / bore-to-tank connection
Industrial fluid transfer
