Acube Pumps
Sprink (SPNK)

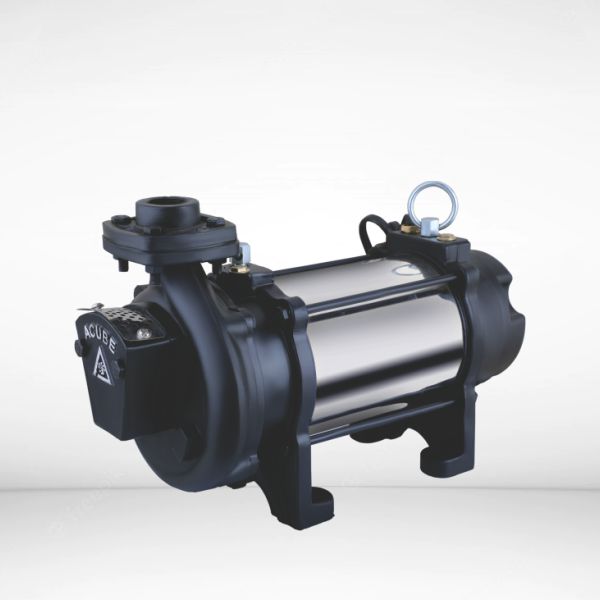

Water-filled domestic horizontal openwell submersible pump with flanged SS motor body.
- Type
- Domestic openwell submersible
- Power
- 0.5 – 5.0 HP
- Max head
- 6 – 32 m
Overview
About the Sprink (SPNK)
Acube domestic horizontal openwell submersible pumpset for open wells, ponds and tanks. Water-filled motor with SS flanged body, carbon thrust bearing and SS strainer; runs at 2900 rpm on single- or three-phase supply.
Features
Key features
SS motor body with flanged design for robustness and reliability
Heavy-duty carbon thrust bearing takes care of thrust loads
Designed to start at low voltage and work under wide voltage fluctuation
Corrosion-free stainless steel shaft
Superior polymer-coated winding wire
All rotating components dynamically balanced for vibration-free operation
Rotors treated with special epoxy paint for corrosion resistance
Stainless steel strainer and SS fasteners
All C.I. parts are C.E.D. coated
Specifications
Technical specifications
Specifications
| Type | Domestic openwell submersible |
| Power | 0.5 – 5.0 HP |
| Max head | 6 – 32 m |
| Max discharge | Up to 940 LPM (model dependent) |
| Outlet size | 25×25 to 65×65 mm |
| Phase | Single & three phase |
| Speed | 2900 rpm |
Material of Construction
Parts & materials
| Part name | Material |
|---|---|
| Motor body | SS AISI 202 |
| Impeller | CI FG 200 / Virgin Noryl |
| Bearing housing | CI FG 200 |
| Diffuser | CI FG 200 |
| Motor shaft | SS AISI 410 |
| Delivery casing | CI FG 200 |
| Rotor | Copper 99.99% |
| Bush bearing | Bronze LTB-4 |
| Thrust bearing | AISI 420 / Carbon |
| Strainer | Stainless steel |
Applications
Where it's used
Irrigation from open wells, ponds, canals, rivers
Water supply to high-rise buildings and communities
Fountains, drip irrigation, nurseries
Pressure boosting
