V7 Jumbo
Agriculture openwell submersible, Jumbo Series — 3–5 HP, up to 30 m head and ~880 LPM.
- Type
- Agriculture openwell submersible (Jumbo Series)
- Series
- V7 Jumbo
- Power
- 3 – 5 HP
Overview
About the V7 Jumbo

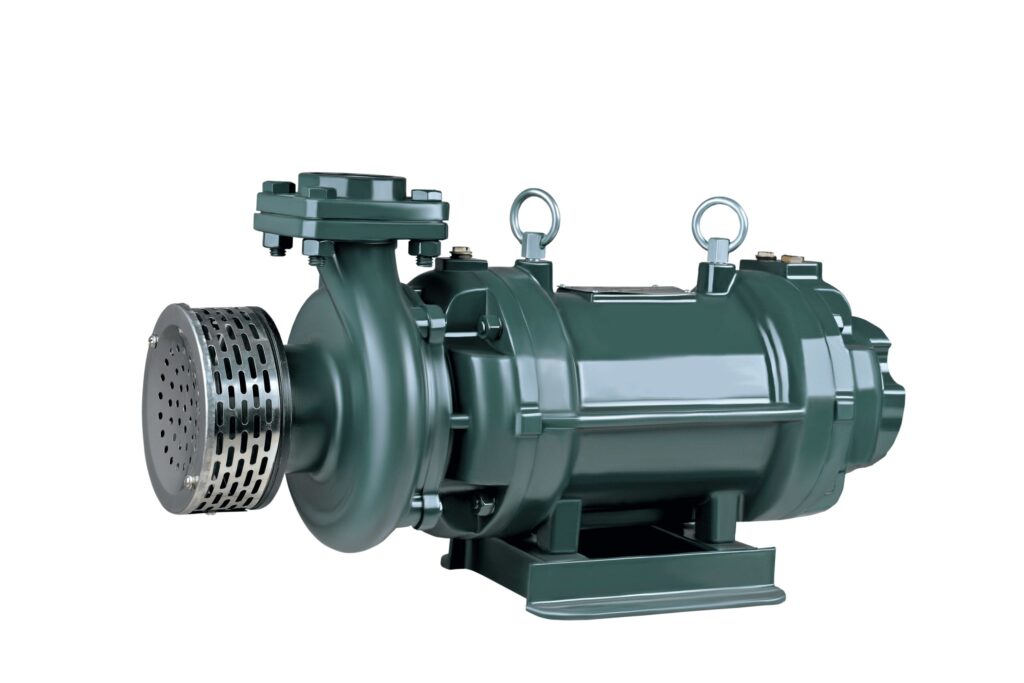

The Acube V7 Jumbo is a heavy-duty agriculture openwell submersible pump for open wells, ponds and canals. Its flanged SS motor body and carbon thrust bearing keep it reliable under wide voltage swings, delivering up to about 880 LPM against a 30-metre head across the 3–5 HP range.
Features
Key features
SS motor body with flanged design for robustness and reliability
Better efficiency and high performance at low voltage
Heavy-duty carbon thrust bearing handles axial loads
Designed to start and run under wide voltage fluctuation
Corrosion-free stainless steel shaft
Specifications
Technical specifications
Specifications
| Type | Agriculture openwell submersible (Jumbo Series) |
| Series | V7 Jumbo |
| Power | 3 – 5 HP |
| Phase | Single / three phase |
| Outlet size | 65 × 50 mm |
| Max head | 30 m |
| Max discharge | 880 LPM |
| Speed | 2900 rpm |
Material of Construction
Parts & materials
| Part name | Material |
|---|---|
| Motor body | Stainless Steel AISI 202 |
| Impeller | Cast Iron FG 200 |
| Bearing housing | Cast Iron FG 200 |
| Motor shaft | Stainless Steel AISI 410 |
| Stamping | CRNO M-45 |
| Delivery casing | Cast Iron FG 200 |
Applications
Where it's used
Irrigation from open wells, ponds, canals and rivers
Water supply to high-rise buildings and communities
Fountains, drip irrigation and nurseries
Pressure boosting
