Acube Pumps

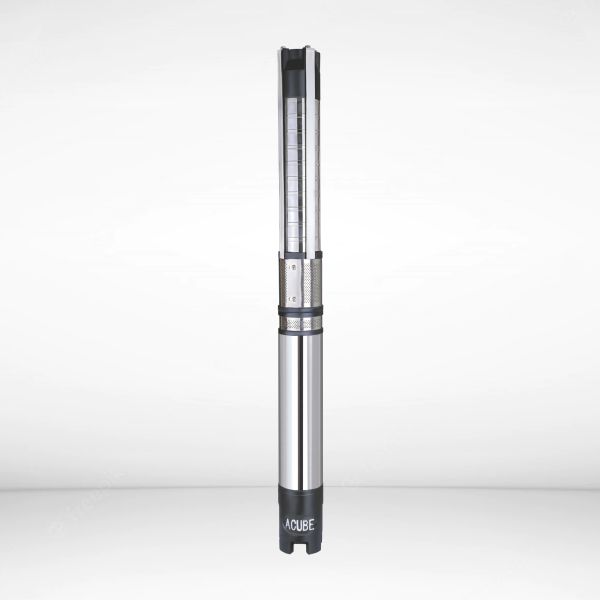

Submersible Pumpset (DELUXE)
100 mm (V4) borewell submersible SS pumpset, DELUXE series.
- Type
- V4 (100 mm / 4-inch) SS borewell submersible, multistage, water-filled
- Power
- 0.5 – 7.5 HP
- Phase
- Single phase 230 V / three phase 415 V
Overview
About the Submersible Pumpset (DELUXE)
Acube V4 (4-inch) borewell submersible SS pumpset, DELUXE series, with a water-filled motor, glass-filled polymer impellers and SS-304 diffusers. 0.5–7.5 HP in single and three phase for medium/high-head borewell duty.
Features
Key features
Water-filled motor; better efficiency and consistent performance
Superior polymer-coated winding wire
Dynamically balanced rotating components
Epoxy-painted rotors; glass-filled polymer impellers
Hard-chrome-plated sleeves and sand guards protecting seals
Metallic wear rings and heavy-duty carbon thrust bearing
Built-in NRV; CI parts CED-coated
Specifications
Technical specifications
Specifications
| Type | V4 (100 mm / 4-inch) SS borewell submersible, multistage, water-filled |
| Power | 0.5 – 7.5 HP |
| Phase | Single phase 230 V / three phase 415 V |
| Max head | ~330 m |
| Max discharge | ~180 LPM |
| Outlet size | 32 – 50 mm |
| Stages | 5 – 60 |
Material of Construction
Parts & materials
| Part name | Material |
|---|---|
| Motor body | Stainless steel |
| Impeller | Glass-filled polymer (Vergine GF>30) |
| Diffuser | SS 304 |
| Bearing housing | CI FG 200 |
| Motor shaft | SS AISI 410/431 |
| Bush bearing | Bronze LTB-4 |
| Thrust bearing | AISI 420 / Carbon |
| NRV | CI FG 200 |
Applications
Where it's used
Domestic water supply
Housing complexes
Dairies and livestock farms
Fire fighting
Solar pumping
Fountains and landscaping
