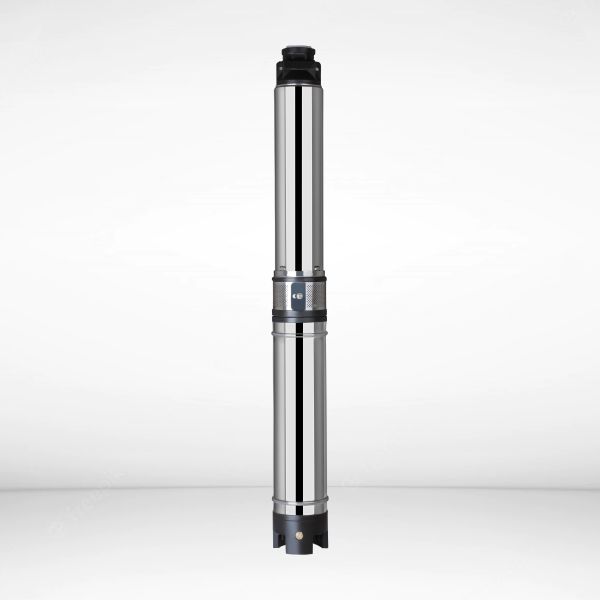

Submersible Pumpset (TARZAN)
Economy 100 mm (V4) borewell submersible pumpset with water-filled motor.
- Type
- V4 (100 mm / 4-inch) borewell submersible, multistage, water-filled
- Power
- 0.5 – 1.5 HP (0.37–1.12 kW)
- Phase
- Single phase, 230 V
Overview
About the Submersible Pumpset (TARZAN)
Acube V4 (4-inch) borewell submersible pumpset, TARZAN economy series, with a water-filled motor and Noryl glass-filled impellers and diffusers. Single-phase 0.5–1.5 HP for domestic and light borewell duty on 100 mm bores and above.
Features
Key features
Water-filled motor
Superior polymer-coated winding wire to withstand voltage fluctuation
All rotating components dynamically balanced
Rotors treated with special epoxy paint for corrosion resistance
30% glass-filled engineering-polymer impellers and diffusers
Hard-chrome-plated sleeves and sand guards for sandy conditions
Carbon thrust bearing and built-in NRV; CI parts CED-coated
Specifications
Technical specifications
Specifications
| Type | V4 (100 mm / 4-inch) borewell submersible, multistage, water-filled |
| Power | 0.5 – 1.5 HP (0.37–1.12 kW) |
| Phase | Single phase, 230 V |
| Max head | ~125 m |
| Max discharge | ~140 LPM |
| Outlet size | 32 mm |
| Stages | 6 – 20 |
Material of Construction
Parts & materials
| Part name | Material |
|---|---|
| Motor body | Stainless steel |
| Impeller | Noryl GFN3 |
| Diffuser | Noryl GFN3 |
| Bearing housing | CI FG 200 |
| Motor shaft | SS AISI 410 |
| Bush bearing | Nitrile rubber |
| Thrust bearing | AISI 420 / Carbon |
| NRV | CI FG 200 |
Applications
Where it's used
Domestic water supply
Housing complexes
Dairies and farms
Fire fighting
Solar pumping
Fountains and gardens
