Acube Pumps

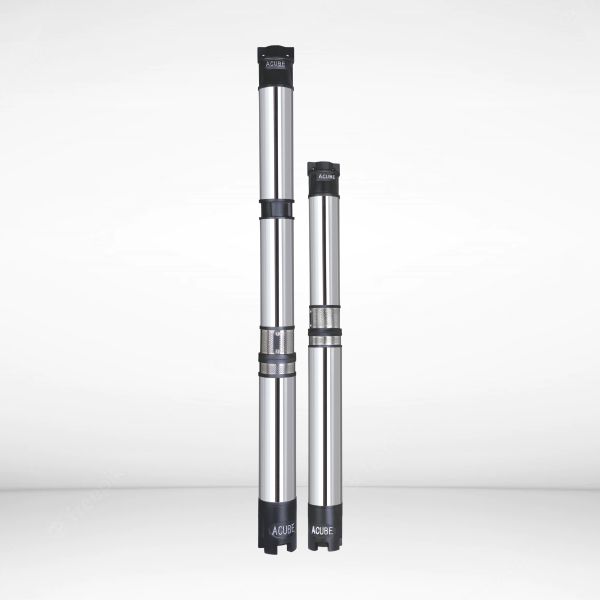

Submersible Pumpset (PREMIUM)
100 mm (V4) borewell submersible pumpset, PREMIUM series, single/three phase.
- Type
- V4 (100 mm / 4-inch) borewell submersible, multistage, water-filled
- Power
- 0.5 – 7.5 HP (0.37–5.62 kW)
- Phase
- Single phase 230 V / three phase 415 V
Overview
About the Submersible Pumpset (PREMIUM)
Acube V4 (4-inch) borewell submersible pumpset, PREMIUM series, with a water-filled motor and Noryl GFN3 impellers/diffusers. Wide 0.5–7.5 HP range in single and three phase covering deep, medium-head borewell duty.
Features
Key features
Water-filled motor
Superior polymer-coated winding wire for voltage-fluctuation resistance
Dynamically balanced rotating components
Epoxy-painted rotors for corrosion resistance
Hard-chrome-plated sleeves and sand guards protecting seals and bushes
Metallic wear rings protecting polymer parts
Built-in NRV with minimal friction
Specifications
Technical specifications
Specifications
| Type | V4 (100 mm / 4-inch) borewell submersible, multistage, water-filled |
| Power | 0.5 – 7.5 HP (0.37–5.62 kW) |
| Phase | Single phase 230 V / three phase 415 V |
| Max head | ~350 m |
| Max discharge | ~370 LPM |
| Outlet size | 32 – 50 mm |
| Stages | 4 – 60 |
Material of Construction
Parts & materials
| Part name | Material |
|---|---|
| Motor body | Stainless steel |
| Impeller | Noryl GFN3 |
| Diffuser | Noryl GFN3 |
| Bearing housing | CI FG 200 |
| Motor shaft | SS AISI 410/431 |
| Bush bearing | Bronze LTB-4 |
| Suction housing | CI FG 200 |
| Thrust bearing | AISI 420 / Carbon |
| NRV | CI FG 200 |
Applications
Where it's used
Domestic water supply
Housing complexes
Dairies and farms
Fire fighting
Solar pumping
Fountains and gardens
